dual_embodied_system_bdd
SPSys
/
SPSysML Model
/
dual_embodied_system_bdd
Project:
dual_embodied_system_bdd
drivers_group_bdd
dual_embodied_system_gos_bdd
hardware_group_bdd
hybrid_agent_bdd
msga_mpga_bdd
physical_agent_bdd
simulation_agent_bdd
subsystem_interfaces_ibd
Hybrid Agent
Mirror Physical Group of Agents
Mirror Simulation Group of Agents
Physical Agent
Physical Control Subsystem
Physical Drivers
Physical Hardware
Physical Real Effector
Physical Real Receptor
Physical Virtual Effector
Physical Virtual Receptor
Physical World
Simulated-Physical Control Subsystem
Simulated-Physical System
Simulated Control Subsystem
Simulated Drivers
Simulated Hardware
Simulated Real Effector
Simulated Real Receptor
Simulated Virtual Effector
Simulated Virtual Receptor
Simulated World
Simulation Agent
System Setup Group of Agents
Twin Group of Agents
World Mirror Group of Agents
:Physical Drivers
:Physical Hardware
:Physical World
:Simulated-Physical Control Subsystem
:Simulated Drivers
:Simulated Hardware
:Simulated World

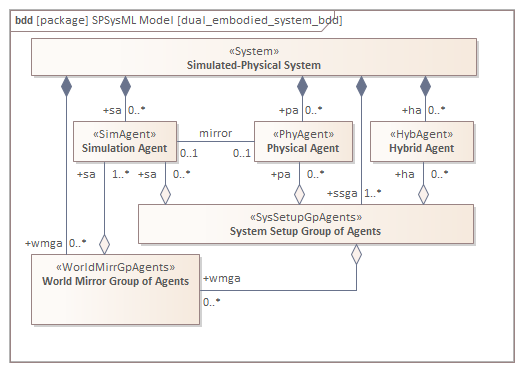

dual_embodied_system_bdd : SysML Block Definition diagram
Created:
16.09.2021 20:42:47
Modified:
16.12.2023 23:11:59
Project:
Author:
Tomcio
Version:
1.0
Advanced:
ID:
{6B143496-86D1-4ac4-ADB0-EA7DB65A31A1}
